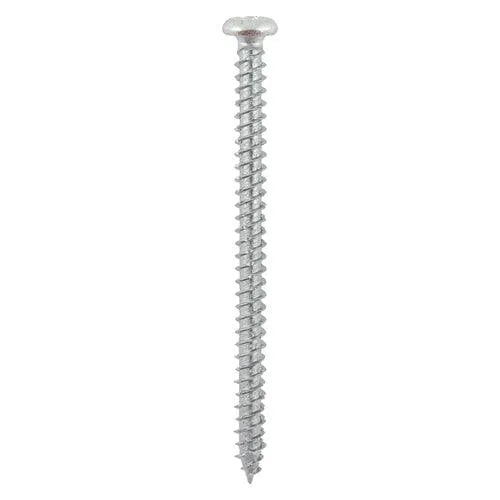

TIMCO Pan Head Concrete Screws | Multi-Fix

£10.68 inc VAT (£8.90 ex VAT)

Apply for a business account for custom pricing

Timco SKU: 75100MFPAN Barcode: 5055893313336

Description

TIMCO pan head concrete screws are pan head concrete screws that fix straight into masonry without a plug. They are made from carbon steel with a zinc finish. Available in 7.5mm, 80mm to 120mm long.

Product Downloads

To request more detais on this product such as a TDS or MSDS, call now 01522 694821 or simply e mail us a request sales@stick2products.co.uk

Key Features & Benefits

  • Built to replace traditional masonry fixings
  • TX30 TX Drive recess to reduce driver wear and prevent camming-out
  • Serrated V-threads to achieve optimum insertion into all masonry types
  • Zinc plated for increased corrosion resistance
  • High-Low thread on first 30mm to aid insertion and reduce torque
  • Carbon Steel with a zinc finish
  • Supplied with TX30 S2 Bit (Qty 1)

Usage / Application

Pan head concrete screws suit a range of work on site and in the workshop.

  • Fixing battens, brackets and fixtures to concrete
  • Brick, block and masonry
  • Temporary and permanent fixings

Specification

  • Type: Pan Head Concrete Screws
  • Material: Carbon Steel
  • Finish: Zinc
  • Head: Pan
  • Point: Sharp
  • Thread: High-Low Start with V Flutes
  • Included: TX30 S2 Bit (Qty 1)
  • Corrosion rating: 1 (clean, dry and low humidity environments)
  • Sizes: 7.5mm, 80mm to 120mm long
  • Pack: 100 per pack

FAQs

Do I need a plug?

No, the screw cuts its own thread into a pre-drilled hole in masonry.

What head?

A flat pan head.

What are TIMCO pan head concrete screws made from?

Carbon Steel with a zinc finish.

What sizes are available?

7.5mm, 80mm to 120mm long. Choose the size you need from the options.
