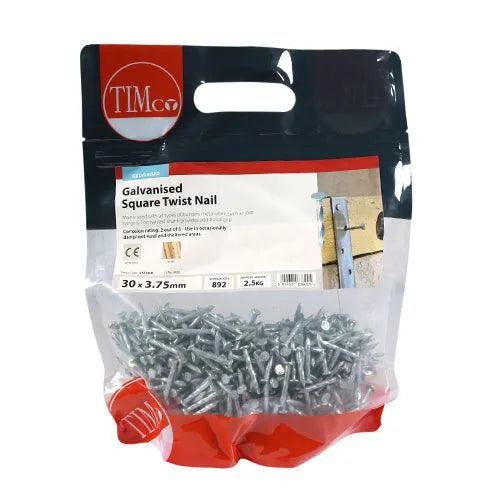

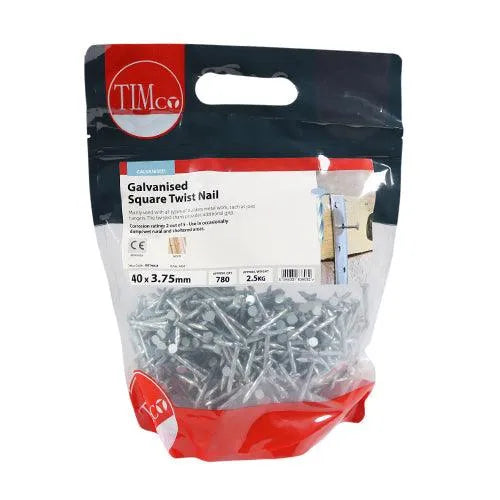

Square Twist Nail - Galvanised

£11.82 inc VAT (£9.85 ex VAT)

Apply for a business account for custom pricing

Timco SKU: GST30LB Barcode: 5055331838025

Description

Square twist nails are the high-grip nail for timber connectors. The twisted square shank drives in with a screwing action and resists pull-out, so it holds joist hangers, framing anchors and truss plates fast. Galvanised carbon steel (corrosion rating 2) in 30mm and 40mm, sold loose by weight, and conforming to Eurocode 5 service class 2.

Product Downloads

To request more detais on this product such as a TDS or MSDS, call now 01522 694821 or simply e mail us a request sales@stick2products.co.uk

Key Features & Benefits

  • Square twisted shank. The twist drives the nail like a screw and gives very high pull-out resistance.
  • Round head. Full bearing to hold connectors and plates tight against the timber.
  • Galvanised carbon steel. Medium-duty rust protection, corrosion rating 2, for sheltered and exterior work.
  • Sizes 30 and 40mm. The standard sizes for timber connectors and joist hangers.
  • Conforms to Eurocode 5, service class 2. Rated for structural connector fixing.

Usage / Application

Square twist nails are the high-grip nail for timber connectors. The twisted square shank bites like a screw, so they hold joist hangers, framing anchors and truss plates fast.

  • Fixing joist hangers, framing anchors and truss clips.
  • Timber connector plates.
  • High-grip timber-to-timber fixing.
  • Decking and outdoor framing hardware.

Specification

  • Brand: TIMCO
  • Material: Carbon steel
  • Finish: Galvanised
  • Head: Round
  • Shank: Square twist
  • Shank diameter: 3.75mm
  • Sizes: 30 x 3.75 and 40 x 3.75
  • Substrates: Timber connectors and metalwork
  • Corrosion rating: 2 (occasionally damp, rural and sheltered)
  • Standard: Conforms to Eurocode 5, service class 2
  • Pack: Loose by weight

FAQs

What are square twist nails used for?

Fixing timber connectors such as joist hangers, framing anchors and truss plates. The twisted square shank grips much harder than a plain nail, which is why connector manufacturers specify them.

Are square twist nails the same as connector nails?

Yes. Square twist nails are the standard connector nail for joist hangers and framing anchors, sized to fit the round holes in the plate.

Why is the shank twisted?

The twist makes the nail drive in with a screwing action and gives high pull-out resistance, so the connector stays tight against the timber under load.
